Dependable power is the key to performance for wireline and wireless communication networks. The Emerson and Lorain Vortex
product lines meet the emerging needs of this marketplace. These systems are technology driven and customer focused, offering
modular design for ease of installation, operation, and expansion, and to meet future capacity requirements.
Network Power Products include:
- Modular DC Power Systems
- Monitoring and Control Products
- Power Management Software
- DC Distribution/BDFB
- Rectifiers/PCUs
- Inverters
- DC-DC Converters
- Hybrid Power and Battery Enclosures
- Flooded and valve-regulated lead-acid batteries (25 to 4000 AHR)
RP Technologies and Emerson also offer total EF&I (Engineering, Furnishing, and Installation) projects, Central Office, MTSO, Cell Sites, Microwave Sites,
PBX, Satellite Earth Stations, and Computer UPS Configurations that meet all industry standards.
New Power Systems
- 25 to 425 AMP - 48 VDC Lorain Expandable Power System
- 65-6000 AMP - 48 VDC Vortex Power System
- Lorain Power System (LPS) 200 AMP PCUs
- 2000 AMPS in one bay - 2400 AMPS of distribution - Add bays to create larger plants up to 10,000 AMPS
More information at www.emersonnetworkpower.com/ energysystems/power.asp
|
|
Small COs/Remote Switch Site/ Cell Site/HUTS/CEVs

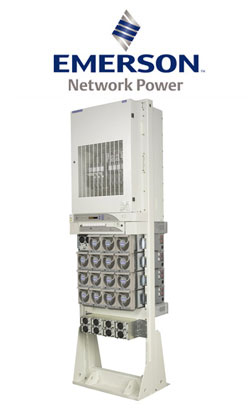

Vortex Power Series (VPS)
- Rectifiers and Distribution in same bay
- Power Conversion - Rectifiers
- 208/240 VAC single-phase
- 100A, 130A @ +24VDC or
50A, 65A @ -48VDC
- 2000 amps per bay @ +24VDC
- 1300 amps per bay @ -48VDC
- Available with new 5000 WATT Power Conversion Units, provides 85 AMPS at 58VDC and 105 AMPS at 48VDC each with a constant power limiting feature
- Distribution
- Modular configurations
- One to four distribution rows
- 500 amps per row
- Up to 2000 amps per bay
- Up to 6000 amps per system
- Integrated Digital MCA
- NEBS Level 3 Certified
- LMS 1000 Monitoring New System
- Extensive Battery Management Options
|
|
